This is the web site of a particle counter at IPGP - Clean Room 5200
It works!
Click here to see graphs and
data.
Data and graphs from the Plantower 7003 OPC.
The pictures of last 24 hours are here
This is the on line system interface of particle counting placed in the
working clean room 5200 of IPGP. Sampling of

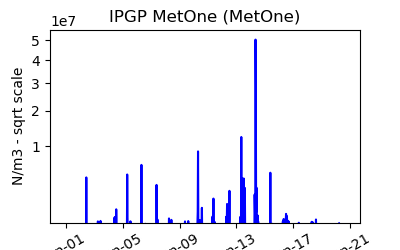

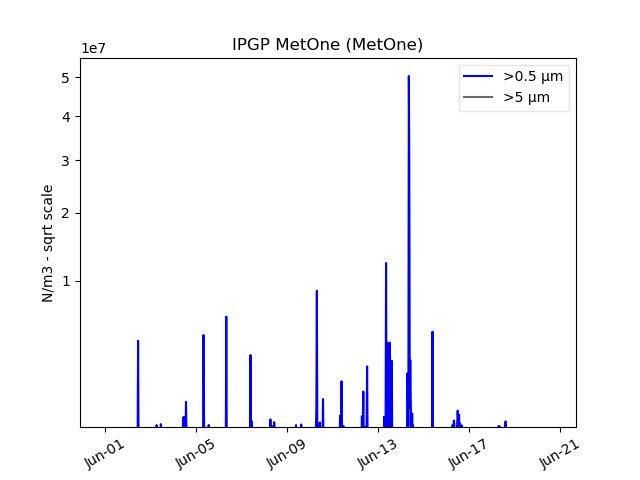

ambiant air (1/10 cft per min, one min). Graphs are ploted in number per cubic meter

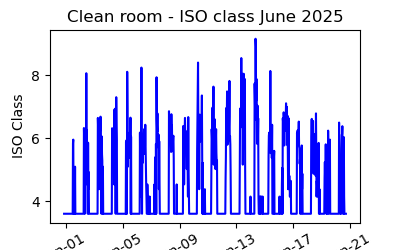

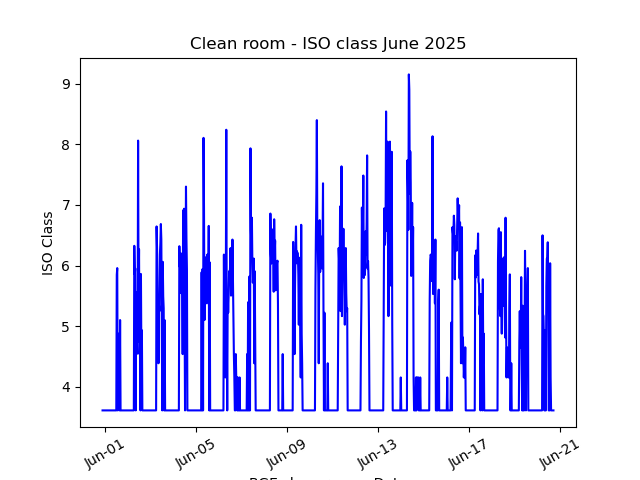

witth a square root mass scale. ISO6 and ISO7 threshold levels are indicated
for 0.5µm diameter particle.
ISO 5 levels:
- 0.3 µm: less than 10200 per cubic meter
- 0.5 µm: less than 3520 per cubic meter
- 1 µm: less than 832 per cubic meter
- 5 µm: less than 29 per cubic meter
You can change ISO +1 by multiplying by a factor 10. Above Iso 6, fine particles
of 0.3 µm don't care
The GPS position of the sampler is at IPGP, Paris
These data are NOT public data, don't use it.
Send me an e-mail to tell me you appreciate these pages and are
interested with the values.
Remi Losno (losno@ipgp.fr)

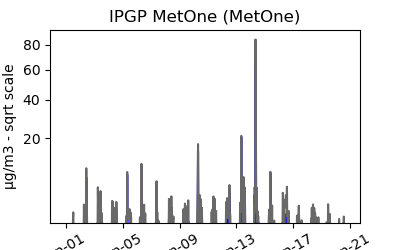

Large thumbnails of current graphs
Click on graph to enlarge
Last update
Plantower 7003 OPC
| Metone 237A
|
